In large equipment consisting of multiple units, there are cases where a common D-sub connector is used for each unit. This section describes D-sub relay connections used when units are replaced or repositioned.
Point of D-sub relay connection
Point1
Co-tighten the rectangular fixing stand to the hood on the short screw side.
Point2

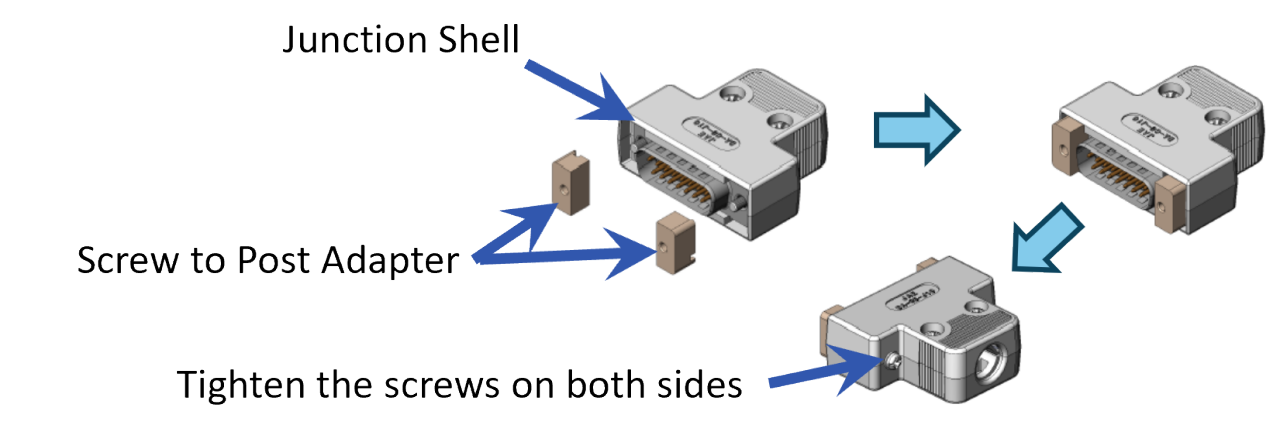

Please remove the round flat small screws that are pre-installed on the rectangular fixing stand.
Point3
When mating and unmating products, rotate the screw on the long screw side.(to prevent the mating fixing stand from falling off after being tightened together)
Please refer to the following downloadable document for details on relaying with hoods of the same shape and item list.
D-sub Relay Connection Download Document
Explanation of D-sub relay method.
Also includes a list of items needed for cable relay.We hope you will find this document useful.
