The number of cables used to connect multiple industrial machinery units together are constantly increasing, adding another level of complexity to the connection work of these devices. The number of cables needed to connect multiple units can be reduced and operation can be simplified by using connectors that enable connectivity of high-density cabling.
The KN06 Series connectors were designed specifically to solve these issues and improve work efficiency.
KN06 Series Overview
The KN06 series features a block-modular ed insulator structure that enables the user to choose the insulator to best suit their application requirements in terminal size and count.
The KN06 Series connector is capable of housing up to six modular insulators and can mate up to 300 cables in a single housing, significantly reducing the number of connectors necessary during installation compared to the conventional solution that uses multiple connectors. The rack and pinion system lever structure allows for little operating force during engagement, and the retractable lever handle allows for connector streamline design. The plastic outer shell permits for a lightweight design also contributing to the reduction in workload during mating operations.

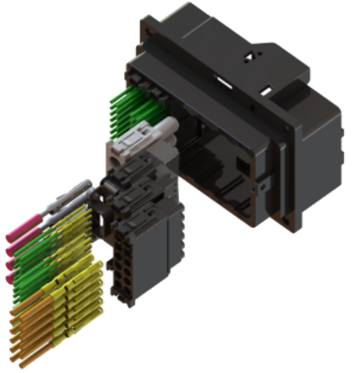

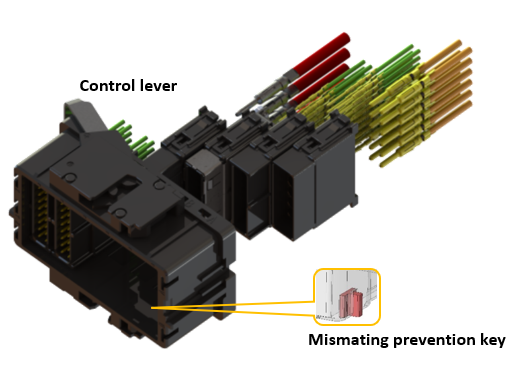

KN06 Series Module Configuration Example

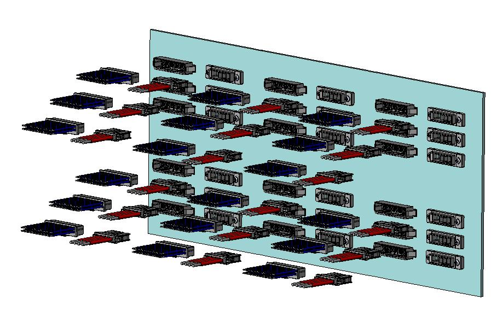

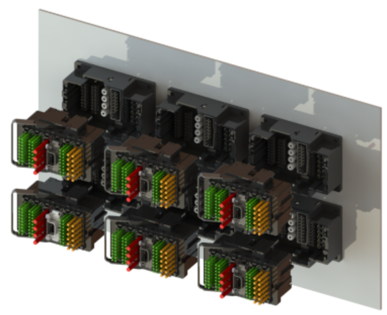

Example of Connector Replacement by KN06 Series

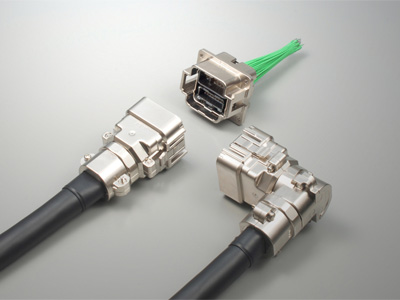

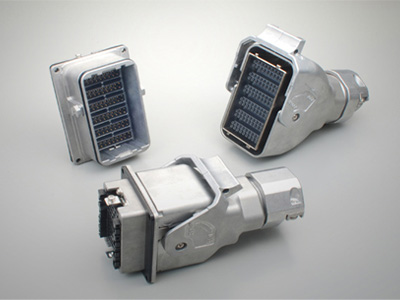

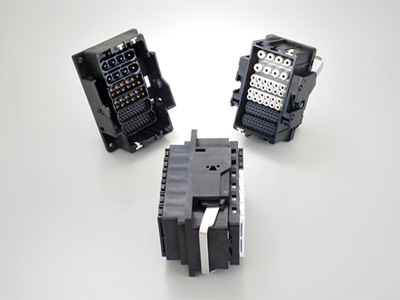

KN Series Product Variations
Subject to change without notice. Errors and omission excepted.
