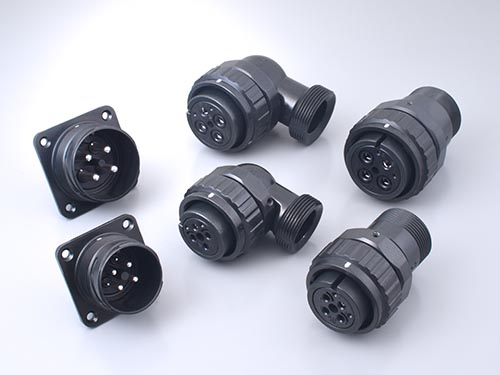

Japan Aviation Electronics Industry (JAE) had developed the JL10 Series, a MIL standard screw mating and one-touch locking hybrid circular waterproof connectors, to offers to a wide range of customers as an interface for industrial equipment. The one-touch lock mating allows for more efficient operation than a screw mating type, as the reliable mating does not loosen even in a vibrating environment and prevents any type of ingress. These products are used for industrial equipment common with circular connectors conforming to *MIL-DTL-5015 standards, but more recently there have been an increasing demand for miniaturization while maintaining robustness, improved operability and reliability of conventional products. By adopting an original contact arrangement that differs from the MIL standard, we have been able to develop new products that are more compact than the conventional JL10 connectors.
2021/12/01
Circular Connectors for Industrial Equipment
JL10 Series
Overview of the JL10 Series

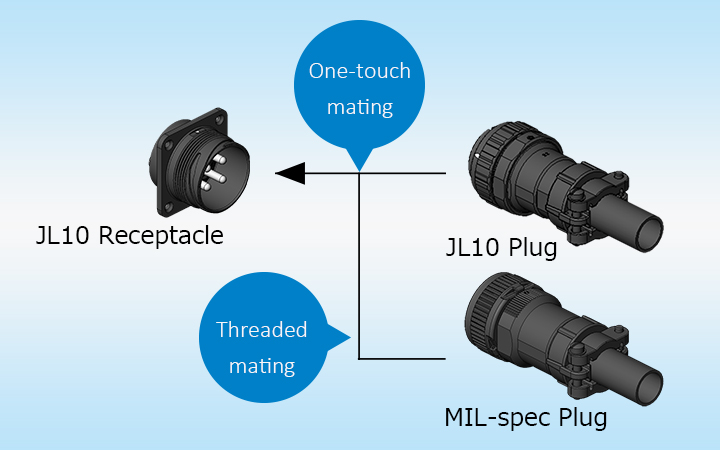

The JL10 Series products have screw threads and one-touch bayonet-style hybrid locking structures on the receptacle, which will mate with either a threaded or a one-touch bayonet-style plug connectors. With the outer dimensions and the mounting hole dimensions of the receptacle meeting conventional MIL-standard the interface can be upgraded a one-touch locking-type by simply replacing the connector without changing the design of the device body.

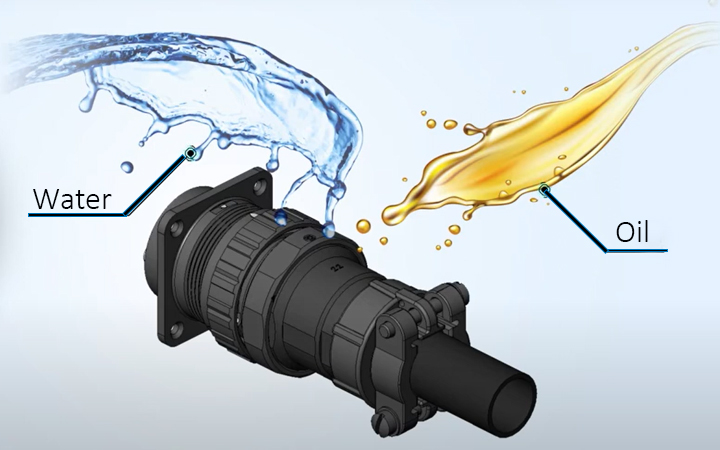

UL recognized and TÜV certified products. Receptacles are offered with IP67 rated water and dustproof. Individual ingress protection (denoted as-2E) and ingress protection in mated condition (denoted as-2A).
Precautions
Please note that a MIL-standard MS-connector compatible receptacles will not mate with a JL10 plugs.
| Receptacle | Plug | Mating | Dustproof/ Waterproof | |
|---|---|---|---|---|
| Combination | MIL-standard MS-A/B connectors and mating- compatible connectors | JL10 | Not compatible | N/A |
| MIL-standard MS-A/B connectors and mating- compatible connectors | MIL-standard MS-A/B connectors and mating- compatible connectors | OK | No | |
| JL10 | MIL-standard MS-A/B connectors and mating- compatible connectors | OK | No | |
| JL10 | JL10 | OK | OK |
*JL10 Series connectors are dustproof and waterproof in mated condition.
