USB Type-C® Connectors

DX07 Series

Input Output (IO) Connectors
Board to Cable Connectors

Since its release, the use of USB Type-C^® connectors have become increasingly popular in various computing devices including PCs, smartphones, and gaming consoles. Due to the flexibility of the interface, it is also commonly used in devices which specialize in supplying power, such as power adapters and mobile batteries.
From high-speed transmission connectors that support Thunderbolt™3 (40Gbps) to connectors that specialize in supplying power and USB 2.0 transmission, we offer a large lineup of products that will fit in a wide range of applications and devices. We are also focusing on developing high performance connectors which meet each new version of the USB specifications including USB4™ and Thunderbolt™4.
As a connector manufacturer who has been involved in the development of the USB Type-C connector standard from the outset, JAE will continue to respond to customer needs and work to improve the ease of adoption by offering many variations for different device designs and PCB mounting requirements.

USB Type-C Applications

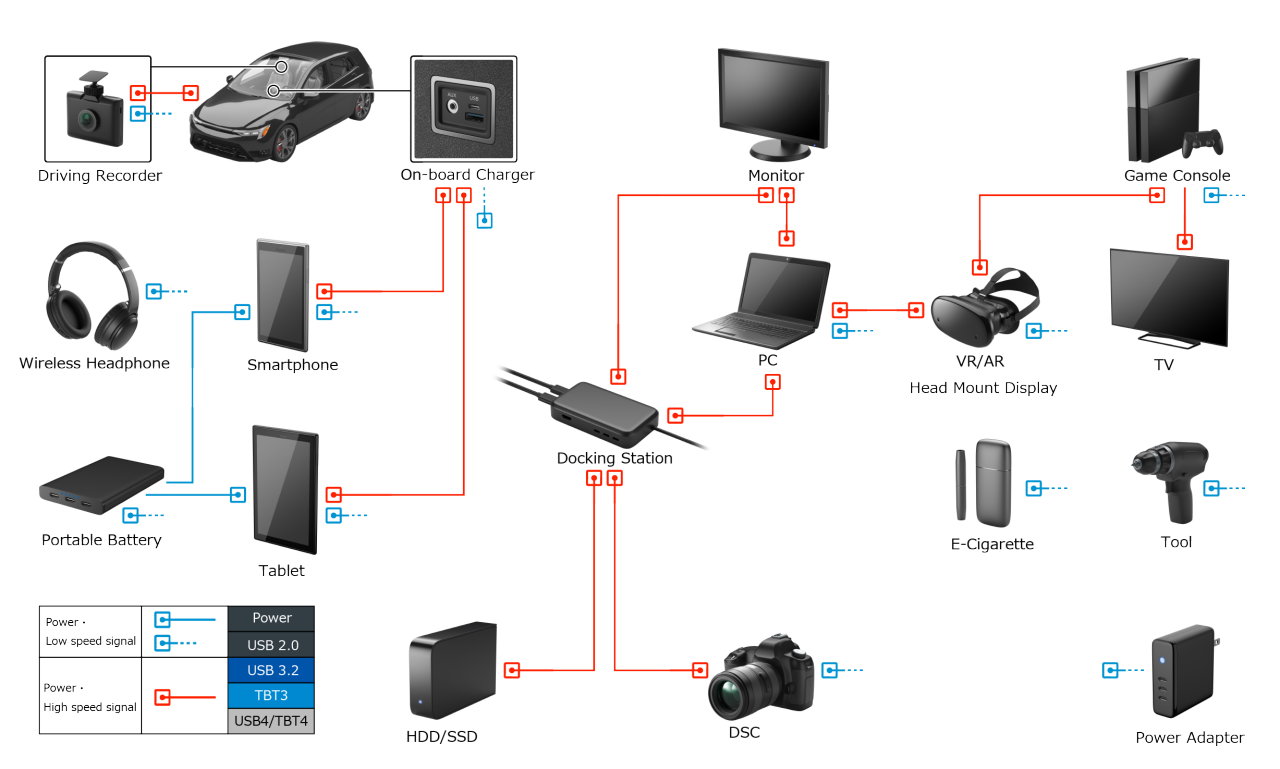

Below are examples of the connections between various devices which use USB Type-C connectors and cables to interface with one another. Depending on the transmission standard (USB4, USB 3.2, USB 2.0, etc.) that each device supports, the cable required to connect the devices to each other will differ.

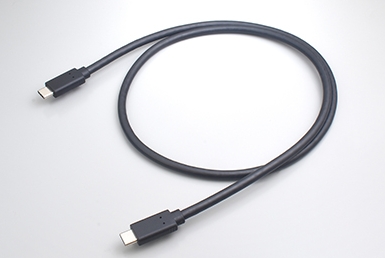

Connection examples for cable harnesses linking major devices expected to feature USB Type-C connectors—such as dashcams, smartphones, and notebook PCs—and the devices themselves.

USB Type-C Connector Receptacle Lineup by Transmission Standard

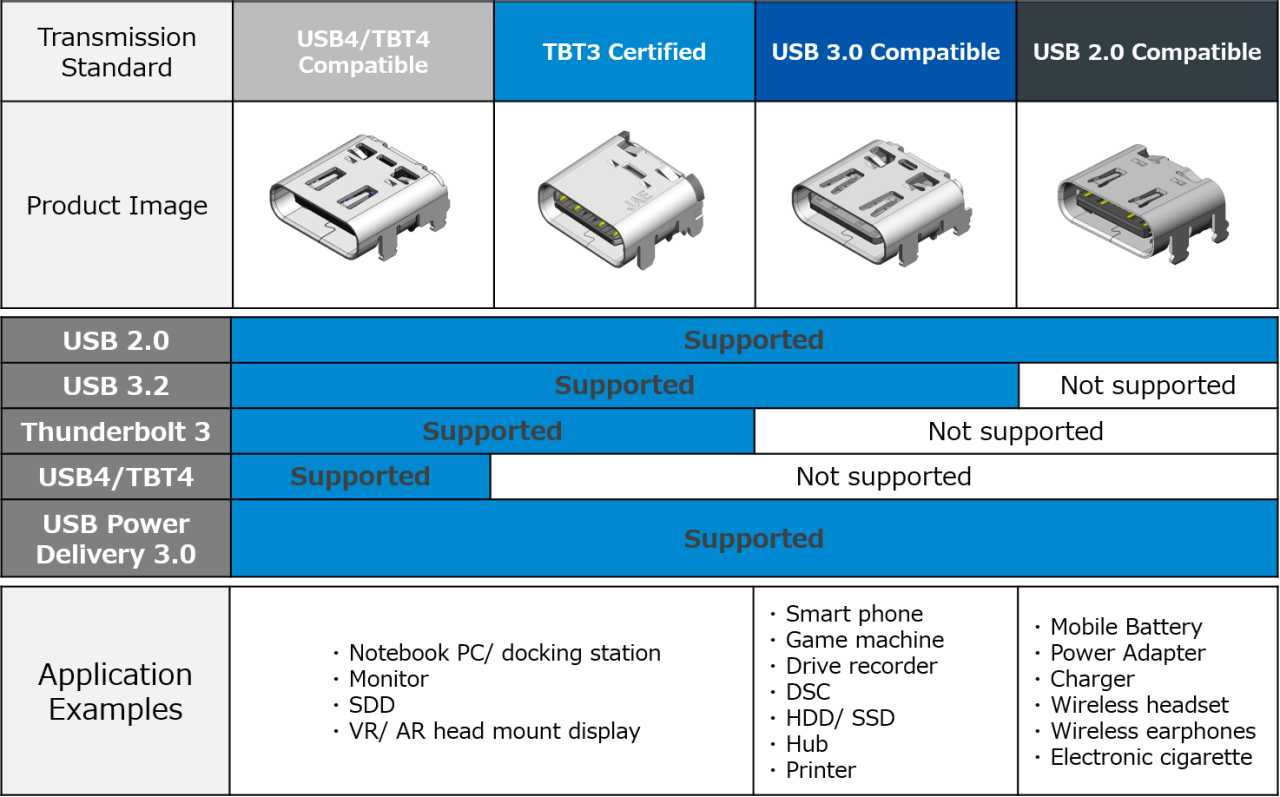

We offer a product lineup that matches each transmission standard. When designing equipment and selecting connectors, use the transmission standards and typical examples of applicable equipment in the table below as a reference.
